## Fast Parallel PRBS Generator |
||

Circuit | Control | Device | Microwave/RF, SI, EMC | Communication and Signal | Disclaimer | Download | Licensing | FAQ | Knowledge Base | About us |
||

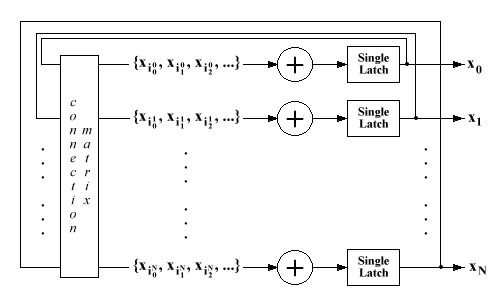

A fast parallel PRBS generator can be implemented by using only N single latches. There are N parallel output that are N-decimated PRBS sequences from an original PRBS from an LFSR, shifted by n bits (n=0,1,...,N-1). The general-purpose schematic diagram is displayed below, followed by the specialized applet which may help a designer to complete the wiring depending on the customized need. This scheme may possibly be applied to the parallel inputs of a muxing circuit. However, the constraint is that the number of stages (bits) in an LFSR has to be the same as the number of parallel branches.
## Brief User's Guide- Fill in the text-field for the number of parallel branches, N
- Click the "Get Coeffs" button to find a set of non-zero feedback coefficient for the given N value
- Simply click the "Calculate" button to compute the appropriate wiring scheme
## ReferencePaul H. Bardell, William H. McAnney, and Jacob Savir, |
||
