Trace Analyzer Benchmark of a Ground backed Co-Planar Wavwguide (GCPW) with Dielectric Overlay

NEW! Download the feature-rich application version of the trace analyzer.

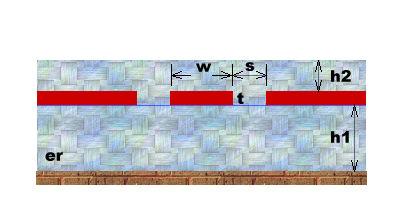

The above structure has dielectric overlay which doesn't fit into the standard template of many solvers.

The parameters for the stripline are given below:

• w = {30, 60} mil
• s = 15 mil
• t = 0 mil (2 mil is used in Trace Analyzer)
• h1 = 42 mil
• h2 = 20 mil
• er = 4.4

Characteristic impedance value computed by QuickField, a finite element (FEM) tool is listed below:

A specialized version of Trace Analyzer is shown below. User can verify the result by using menu Calculate::Impedance and use it as a template to solve similar problems.

References

[1] Daniel G. Swanson, Jr. and Wolfgang J. R. Hoefer, "Microwave Circuit Modeling using Electromagnetic Field Simulation," Artech House, 2003, pp. 250-251.
